IntelliJet Technology




INTELLIJET™
VARIABLE MARINE JET
U.S. Patent  (Click here for .pdf)
#7,241,193 B2




Virtual Reality Page Link

Flash Videos

Windows Media Player and QuckTime Videos



BEFORE

                             AFTER






















Stern Drive Before Retrofit

IntelliJET on Test Boat








May '05 - Presentation  to MACC 2005
Multi-Agency Craft Conference (.pdf)


Hosted by
NSWC - NavSea Warfare Centers

NSRP Presentation
National Shipbuilding Research Program
Product Design and Materials  Technology Panel
June. 2008

(Use zip wizard to extract files to a new folder,
 then open pptview.exe file or PowerPoint file.)

White Papers



IntelliJet™ Performance Advantages


Fast Ship Propulsion:
The State of the Art / Propulsion Revolution



The Relative Unimportance of Pump Efficiency

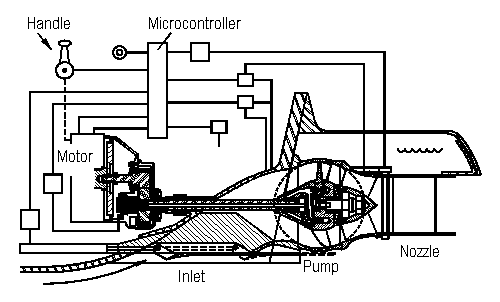

  Variable Marine Jet Components
  • Variable pitch propeller pump
  • Variable rectangular steering nozzle
  • Variable inlet duct
  • Common embedded microcontroller






Embedded Microcontroller

Fly by Wire for Watercraft



The embedded microcontroller  program
regulates:

  • The pump to maintain motor efficiency
  • The nozzle to maintain pump efficiency.
  • The inlet to maintain recovery efficiency.

So the total system operates at peak efficiency at all speeds and under all loads and accelerations.

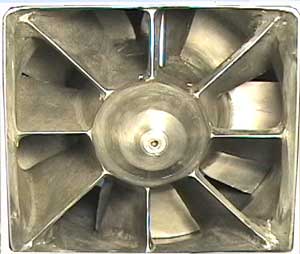

Variable pitch propeller pump

Quick, smooth shifting forward /neutral /reverse

Continuously Variable Power Transmission (CVT)

Eliminates need for reversing "bucket"


  Variable inlet duct Slide adjusts entrance opening for ideal velocity

Partitions double as inlet grate for trash handling

Inlet duct becomes nozzle in reverse thrust mode

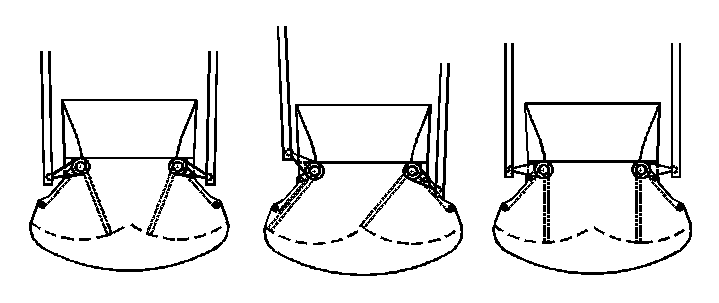

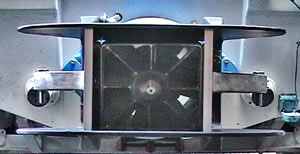

  Variable rectangular steering nozzle



Provides steering in both forward and reverse
