INTELLIJET™
VARIABLE MARINE JET
U.S. Patent
(Click for .pdf)
#7,241,193 B2
Variable Marine Jet Propulsion
Dated: July 10, 2007
|
Virtual
Reality Video
|
|
|
|
IntelliJET™ incorporates
the
following
improvements
over
the 1st generation technology: |
|
|
|
|
|
|
|
No reversing bucket |
More compact system allows
larger nozzle
Eliminates danger of reversing bucket to swimmers
Other safety features
- Sliding fits on all moving parts
- No pinch points |
|
|
|
Continuously variable
maneuvering thrust
|
Continuous range of
forward, neutral and reverse
without stopping to shift (for example, driver
can choose to be 40% in forward or reverse)
Instant response to driver
input
Eliminates gear mashing and
gear related
repair bills
|
|
|
|
Continuously variable
power transmission in
forward mode
|
Provides more efficient
engine operation
and
better gas mileage
Increases thrust efficiency
(lower RPM
produces higher thrust for a given power input)
Reduces vibration and noise
Smooth |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Here is a recreational boat
design
incorporating the revolutionary IntelliJet propulsion system
View of
boat from bottom
|
|
|
|
Back to
Top |
|
|
|
|
|
|
|
Slider
closed |
Closed
|
|
|
|
The variable opening adjusts
the speed of the water as comes onto the boat. |
|
|
|
|
|
|
|
Slider
open |
Open |
|
|
|
|
|
|
|
|
Back to Top |
|
|
|

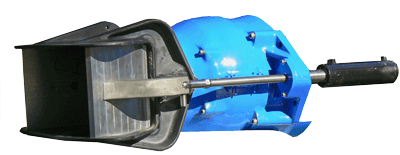

System
fits neatly
under swim platform |
 |
|
|
|
The pump and nozzle fit
neatly under the swim platform,
which is the ideal height found on popular wakeboard boats and ski boats.
|
|
|
|
|
|
|
|
|
|
|
|
|

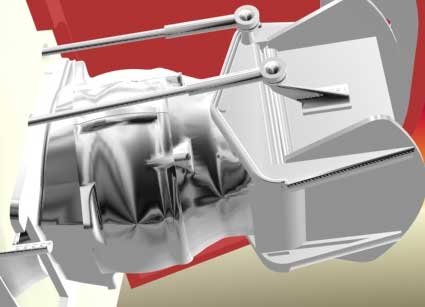

Housing
removed to show

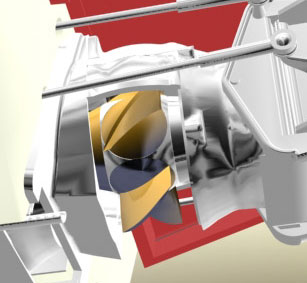

vanes in forward position |
Forward |
|
|
|
A
cutaway view shows the operation of the propeller to create forward thrust.
|
|
|
|
|
Back to Top |
|
|
|
Housing
removed to show

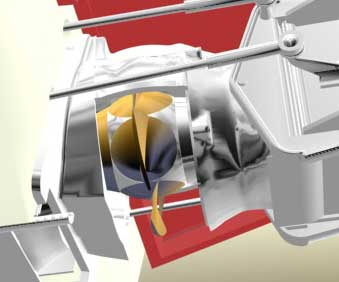

variable impeller in neutral position |
Neutral |
|
|
|
The blades move to zero pitch for true neutral with no thrust in any
direction.
|
|
|
|
|
|
|
|
|
Housing removed to show
blades in reverse
position |
Reverse |
|
|
|
In reverse
pitch the blades pump water backwards through the system.
The inlet is reduced to become a nozzle for reverse thrust.
Shifting between forward, neutral, and reverse is smooth and quick,
because there are no gears to mesh.
|
|
|
|
|
|
|
|
|
|
Back to
